PMB Suspension

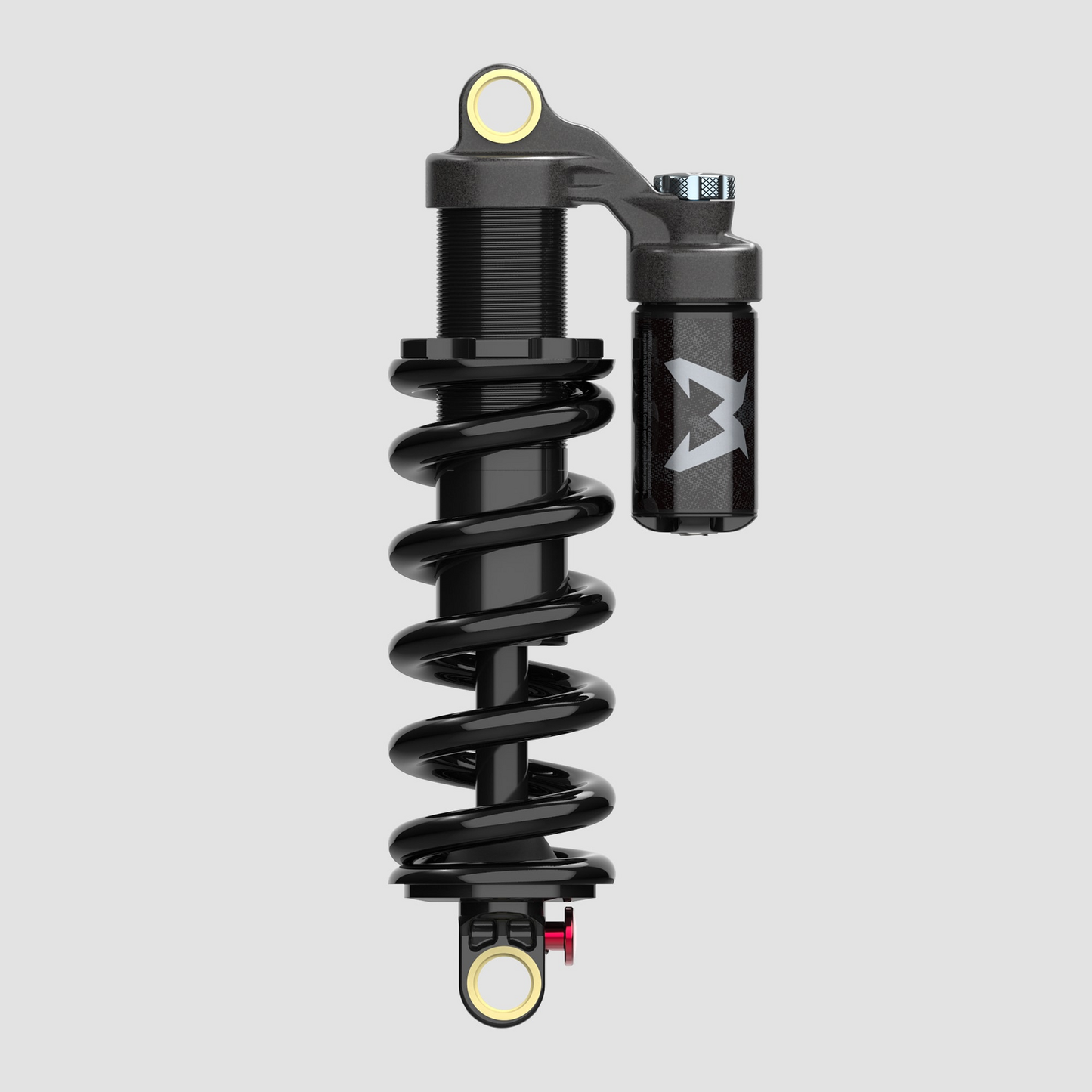

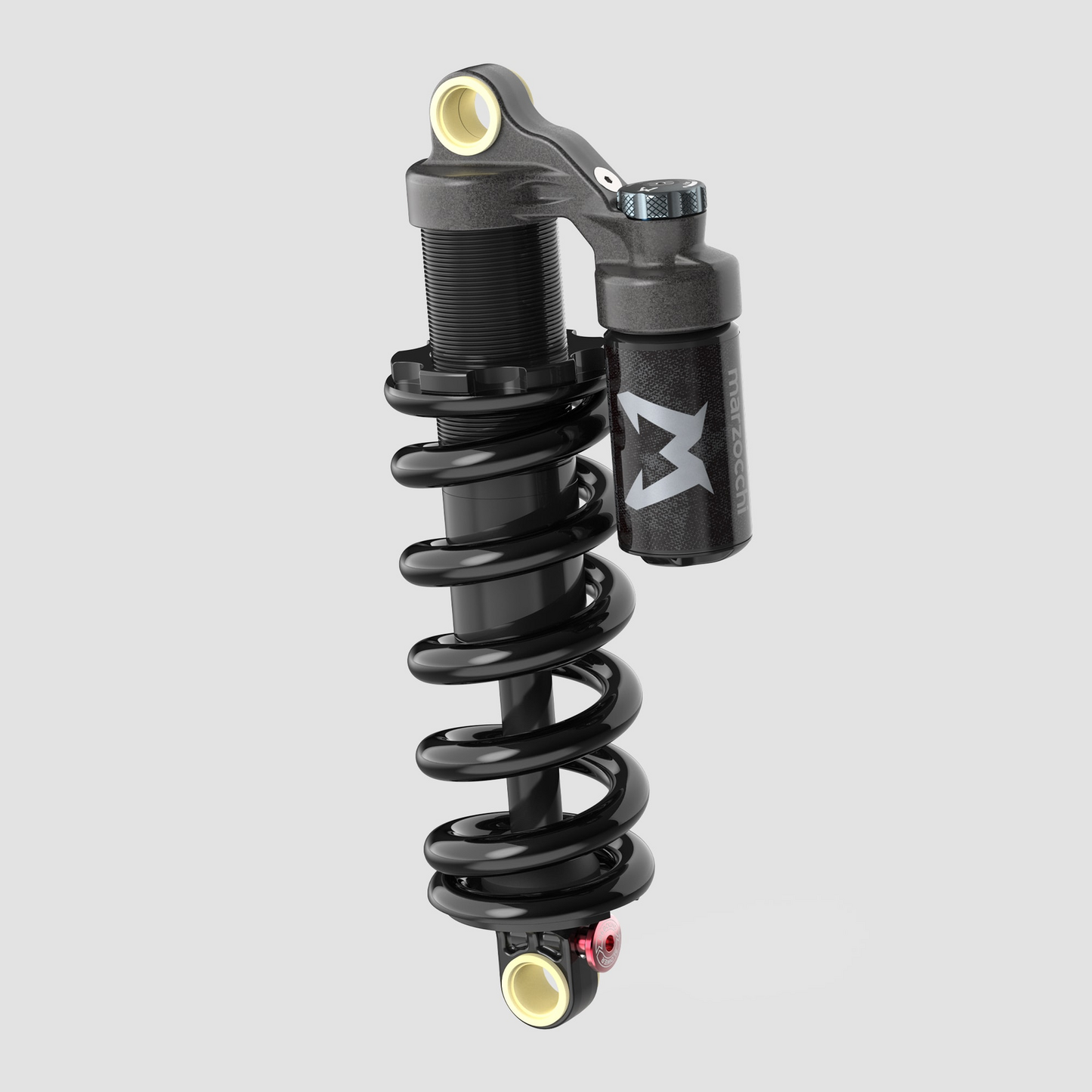

Marzocchi CR WPS

Marzocchi CR WPS

Prix habituel CHF 680.00
Prix habituel Prix promotionnel CHF 680.00
En vente Épuisé
Taxes incluses.
Length x Travel

Spring included

"special order" variant may take ~4 weeks to complete

Ressort compris

Les versions "special order" peuvent prendre 4 semaines pour le montage

WPS Tune

Afficher tous les détails

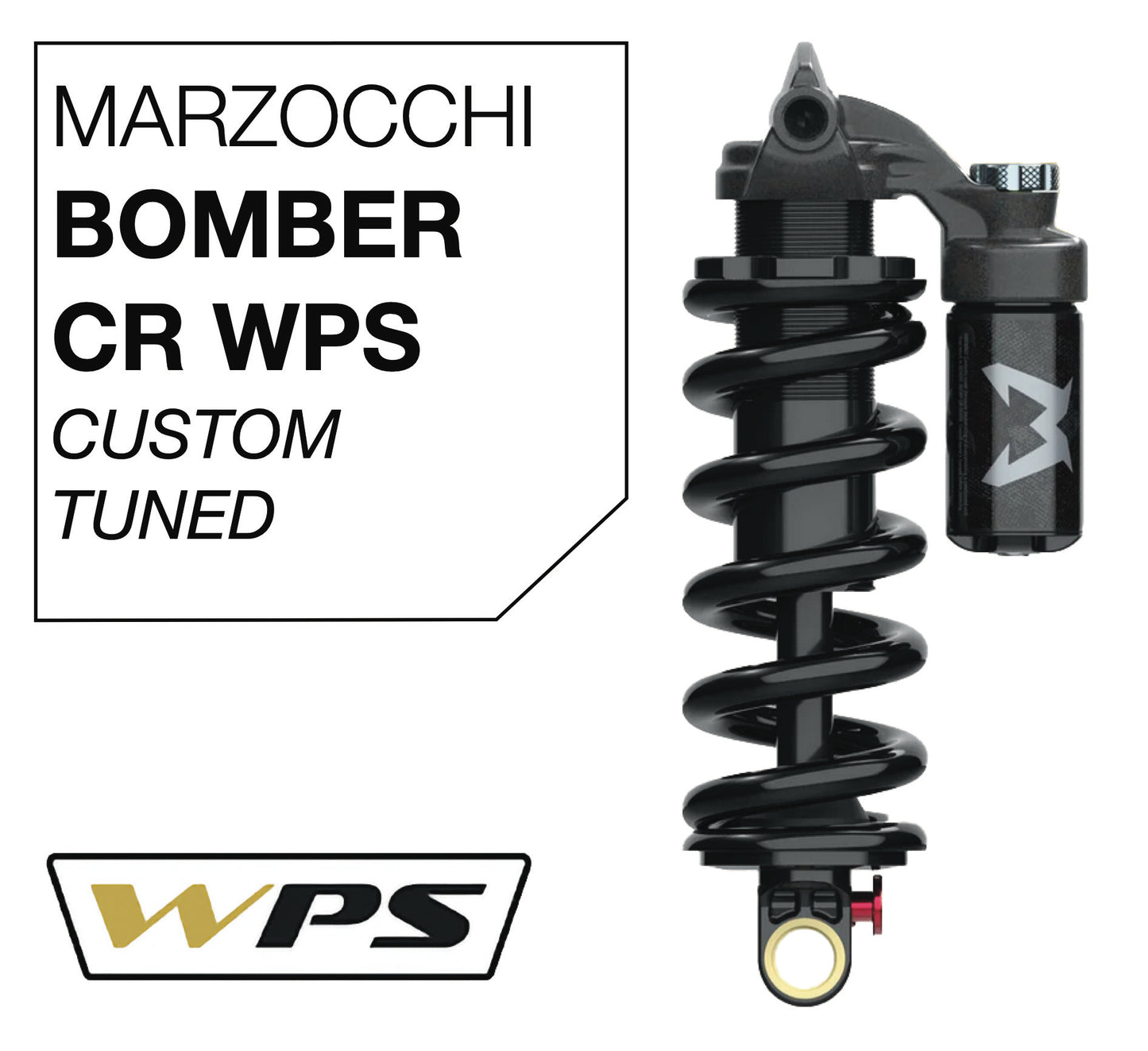

Marzocchi Bomber CR WPS: Caractéristiques

Product Table
Hydraulic System Single Tube
Spring Type Coil
Compatible springs All Fox coil springs (no adapter needed), Cane Creek (adapter needed), Öhlins (adapter needed)
Adjustability 2-Ways: compression and rebound
Compression Adjustment 16 (low speed)
Rebound Adjustment 15
Coil spring preload Yes
Tune (internal settings) 16 different combinations, see below
Hydraulic settings (internal) C1 or C2 or C3 or C4 - set by PMB based on the bike/rider/goals
Rebound settings (internal) R1 or R2 or R3 or R4 - set by PMB based on the bike/rider/goals
Remote Adjustement No
Hydraulic Lockout No, but compression adjustment fully turned in restrict movement
Stroke Adjustment Can be done by a qualified service center using spacers
Stroke for 185 and 210mm lengths 55, 52,5, 50, 47.5
Stroke for 205 and 230mm lengths 65, 62.5, 60, 57.5
Stroke for 225 and 250mm lengths 75, 72.5, 70, 67.5
Length x Travel available on demand Most imperial sizes, including 10.5x3.5 (266x89mm), 7.5x2, 7.875x2, 7.875x2.25, 8.5x2.5, 8.75x2.75
Cylinder heads Standard or Trunnion
Reservoir size Full size: make sure your bike has enough space
Eyelet size 15mm
Service Fully serviceable by qualified mechanics
Durability All parts available
Made in Assembly in Switzerland, parts from UK and Taiwan
