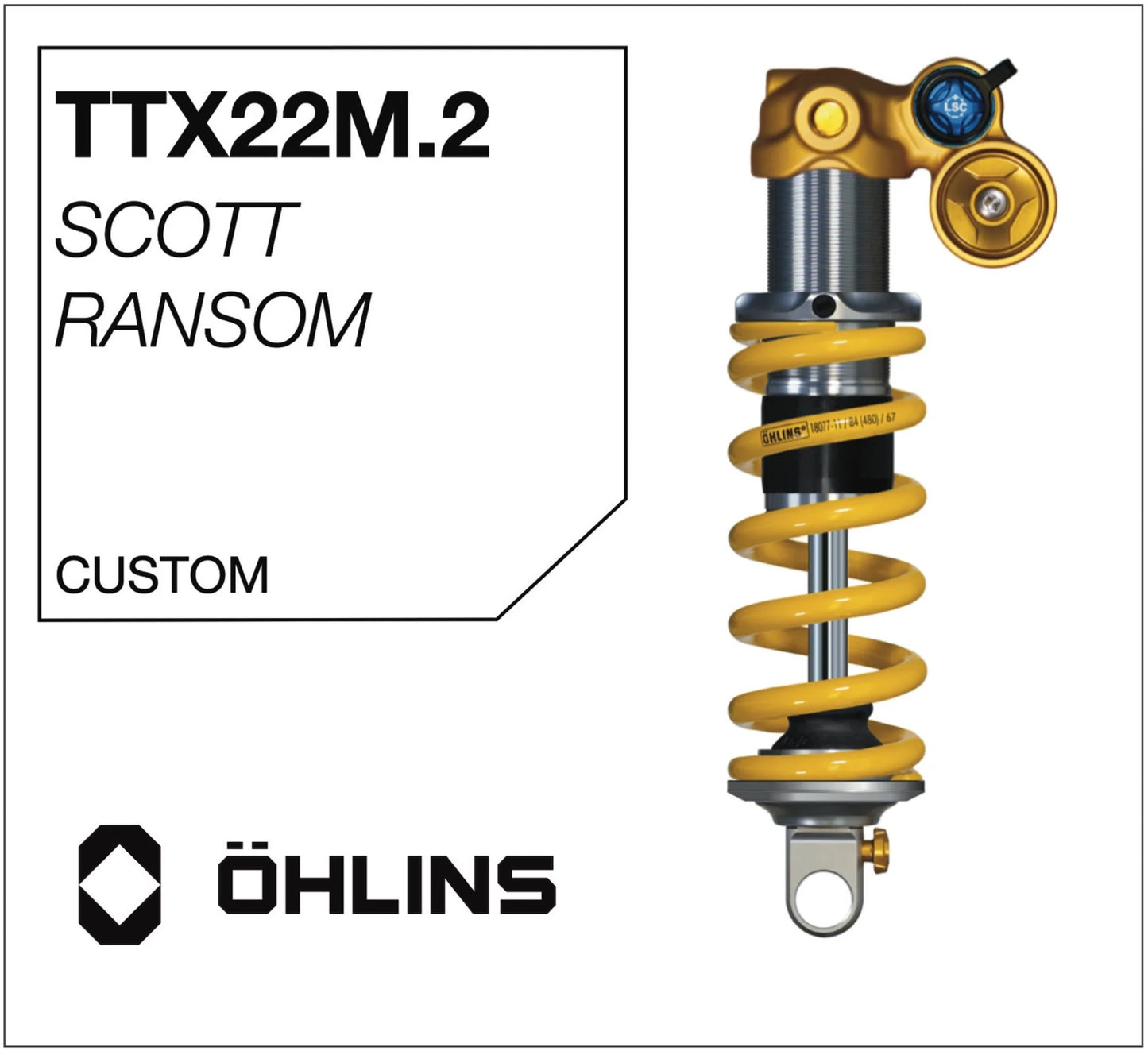

Öhlins TTX22m.2 Scott Ransom
Öhlins TTX22m.2 Scott Ransom
Prix habituel
CHF 980.00
Prix habituel
Prix promotionnel
CHF 980.00
Prix unitaire
par
Taxes incluses.
Impossible de charger la disponibilité du service de retrait
Scott Ransom Unit
Afficher tous les détails
- Custom Öhlins TTX22m.2 for Scott Ransom
- Built to fit Scott Ransom 2018-2023 with nothing to adapt internally or externally
- Each unit is build-to-order
- Total price include a 10% discount - see details below
Package
- Ready to mount 205x65 unit with side-by-side "TR" cylinder head and specific eyelet and rebound knob (black with super-short rebound knob) [840 CHF]
- Specific valving for Scott Ransom [180 CHF]
- 8/30 mounting hardware and fitting [40 CHF]
- Total 1060 CHF - package price is 910 CHF
- Spring is not included
Compatibility
- Ransom 2018-2023: Ransom frames with the shock visible from the outside, generally sold until mid-2024
- Fitting require removing the undercover from the frame or pushing it back inside, then using tape or a custom cover to protect the inside of the frame from dush
- Access to the HSC lever might be constrained depending on the version and size of the frame
- Compatible with spring series 18077 and 18073
TTX22m.2 Features
- Twin-Tube TTX design
- 22mm piston
- Nitrogen-pressured reservoir
- High Speed Compression Adjuster (HSC)
- Low Speed Compression Adjuster (LSC)
- Rebound Compression Adjuster
- Fully repairable and serviceable
Öhlins TTX22m.2: Caractéristiques
| Hydraulic System | Twin Tube (TTX) |
| Spring Type | Coil |
| Low Speed Compression (LSC) Adjustment | 16 clicks |
| High Speed Compression (HSC) Adjustment | 3 clicks: open, medium, hard |
| Rebound Adjustment | 7 clicks |
| Remote Adjustement | No |
| Stroke Adjustment | Can be done using 2.5mm spacers |
| Coil spring preload | 1.5-2 turrns after the collar touch the spring |
| Stroke for 185 and 210mm lengths | 55, 52,5, 50, 47.5mm |
| Stroke for 205 and 230mm lengths | 65, 62.5, 60, 57.5mm |
| Stroke for 225 and 250mm lengths | 75, 72.5, 70, 67.5mm |
| Spring serie for 185 and 210mm lengths | 18075 |
| Spring serie for 205 and 230mm lengths | 18077 |
| Spring serie for 225 and 250mm lengths | 18073 |
| Valve for 185, 205, 210 and 230mm lengths | Blue Trail compression valve (position 3 = pedal mode) |
| Valve for 225 and 250mm lenghts | Golden DH compression valve |
| Length x Travel available on demand | 190x45, 250/225mm with Blue Valve, 200x57 (8.75x2.25), 230mm Trek (with Trunnion head) |
| Cylinder heads | Side-by-side or Piggyback (external reservoir) |
| Eyelet size | 15mm inner diameter |
| Service | Fully serviceable by qualified Öhlins Service Centers |
| Durability | All parts are made available to qualified Öhlins Service Center |
| Assembly in | Assembly in Switzerland by PMB for all custom units |
