Öhlins TTX22m.2 Custom

Öhlins TTX22m.2 Custom

CHF 920.00
CHF 920.00
Sale Sold out
Taxes included.
Length x Travel
Build

Custom Öhlins top-end TTX coil shock for MTB

Each unit is built specifically for the customer at the workshop in Switzerland

Custom Features
After ordering we will contact you to define:
Custom travel: not just 55, 65 or 75, adjusted to your needs before shipping
Custom tune: based on your bike geometry, your weight, practice and goals

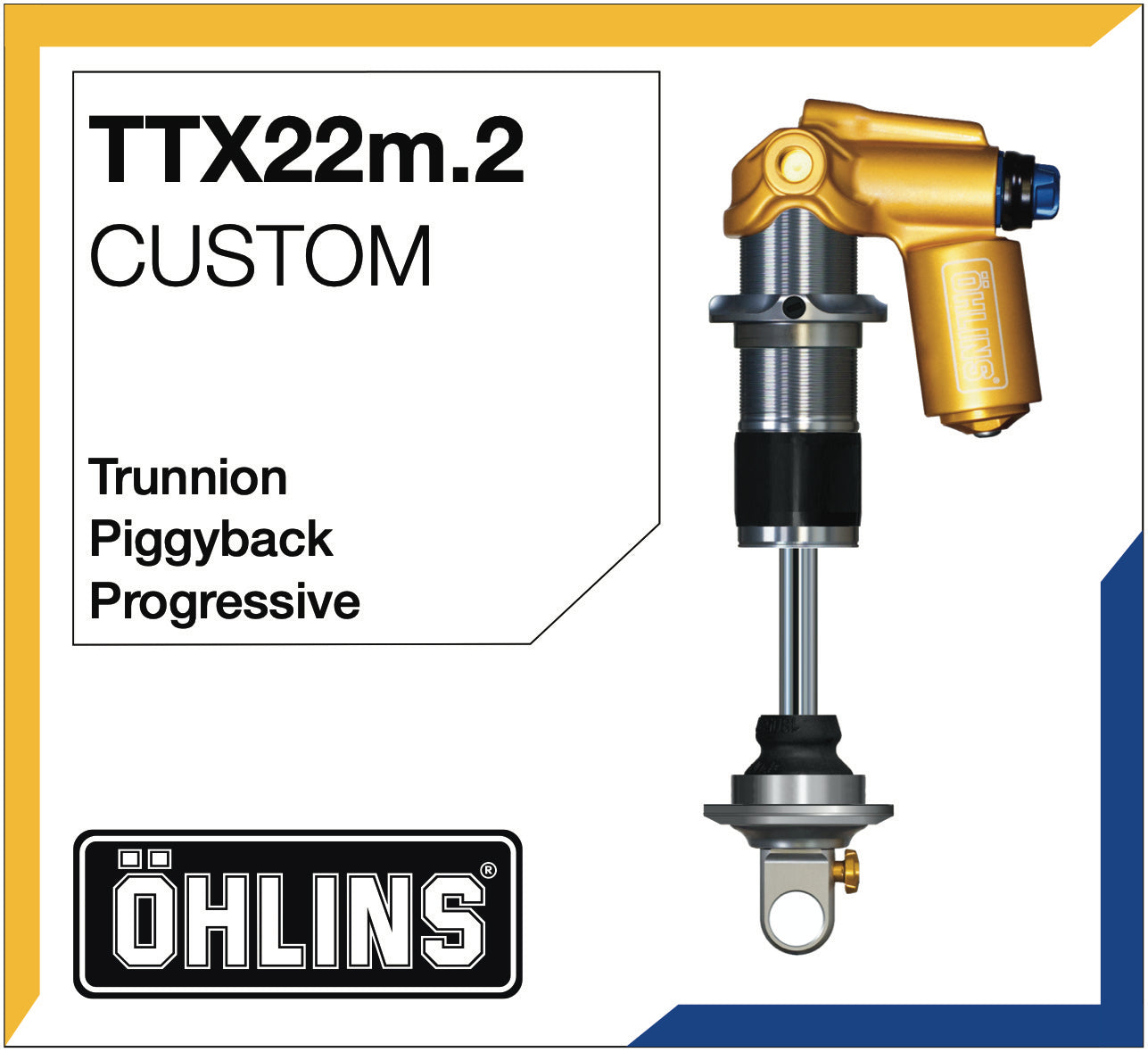

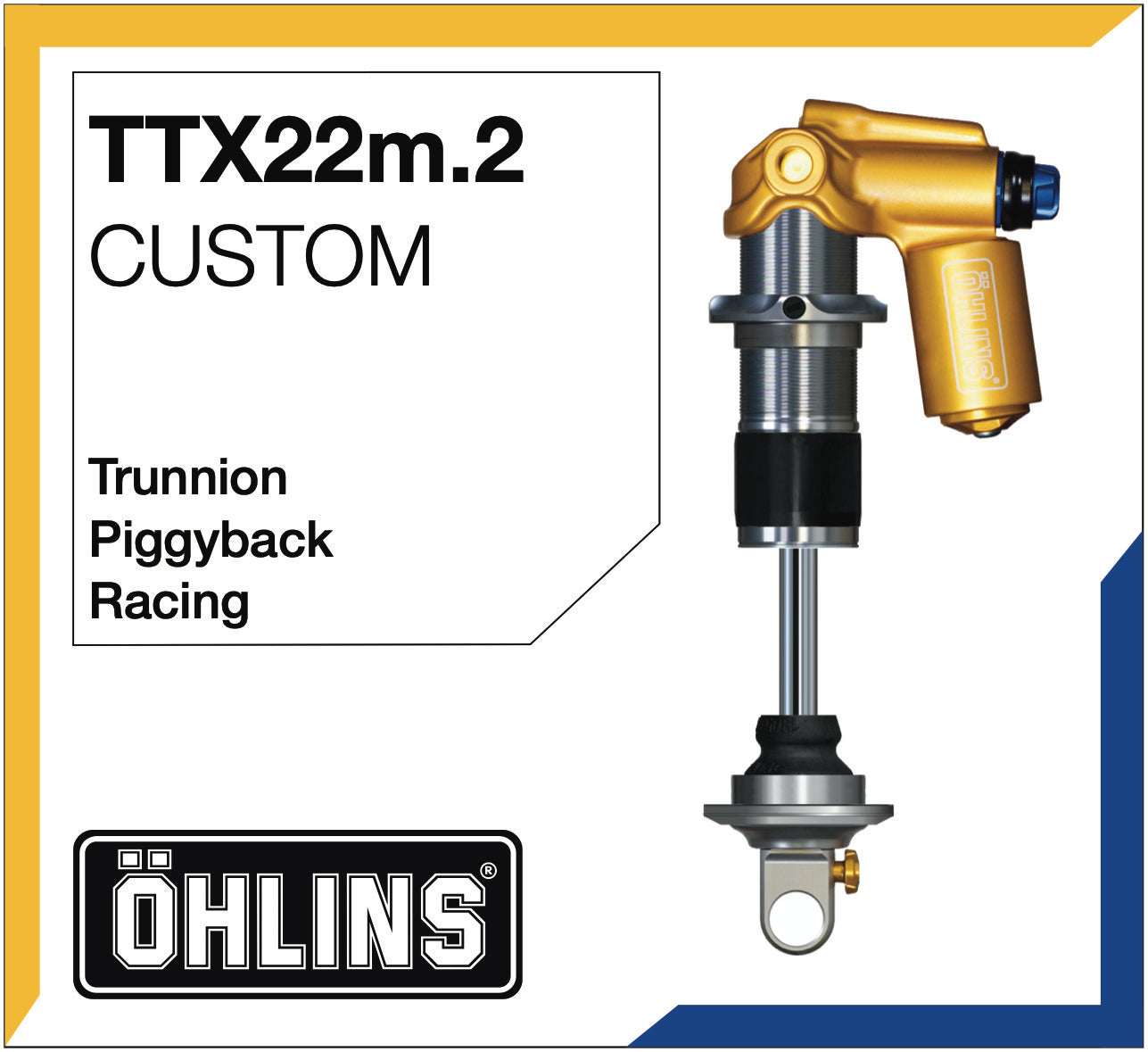

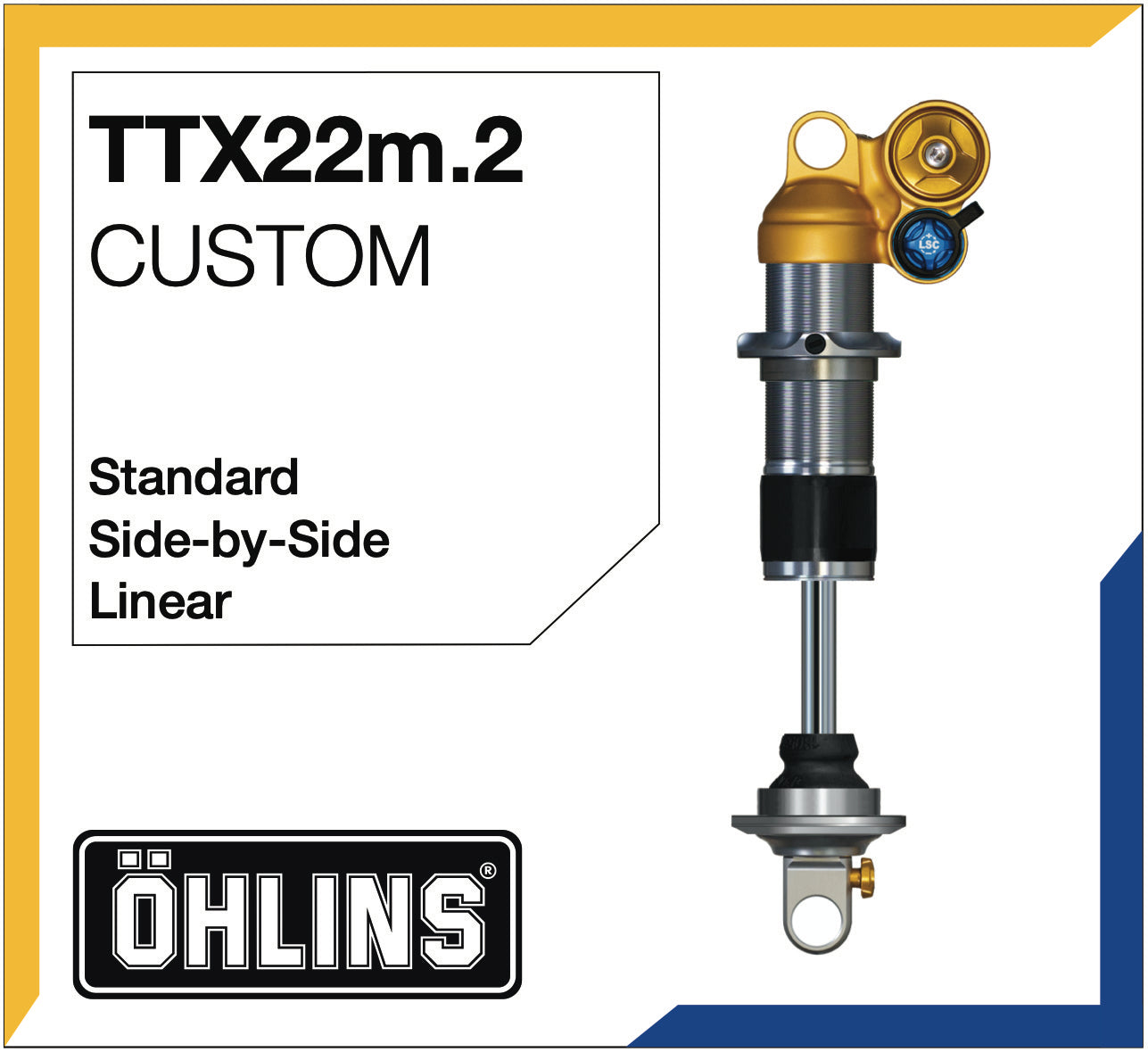

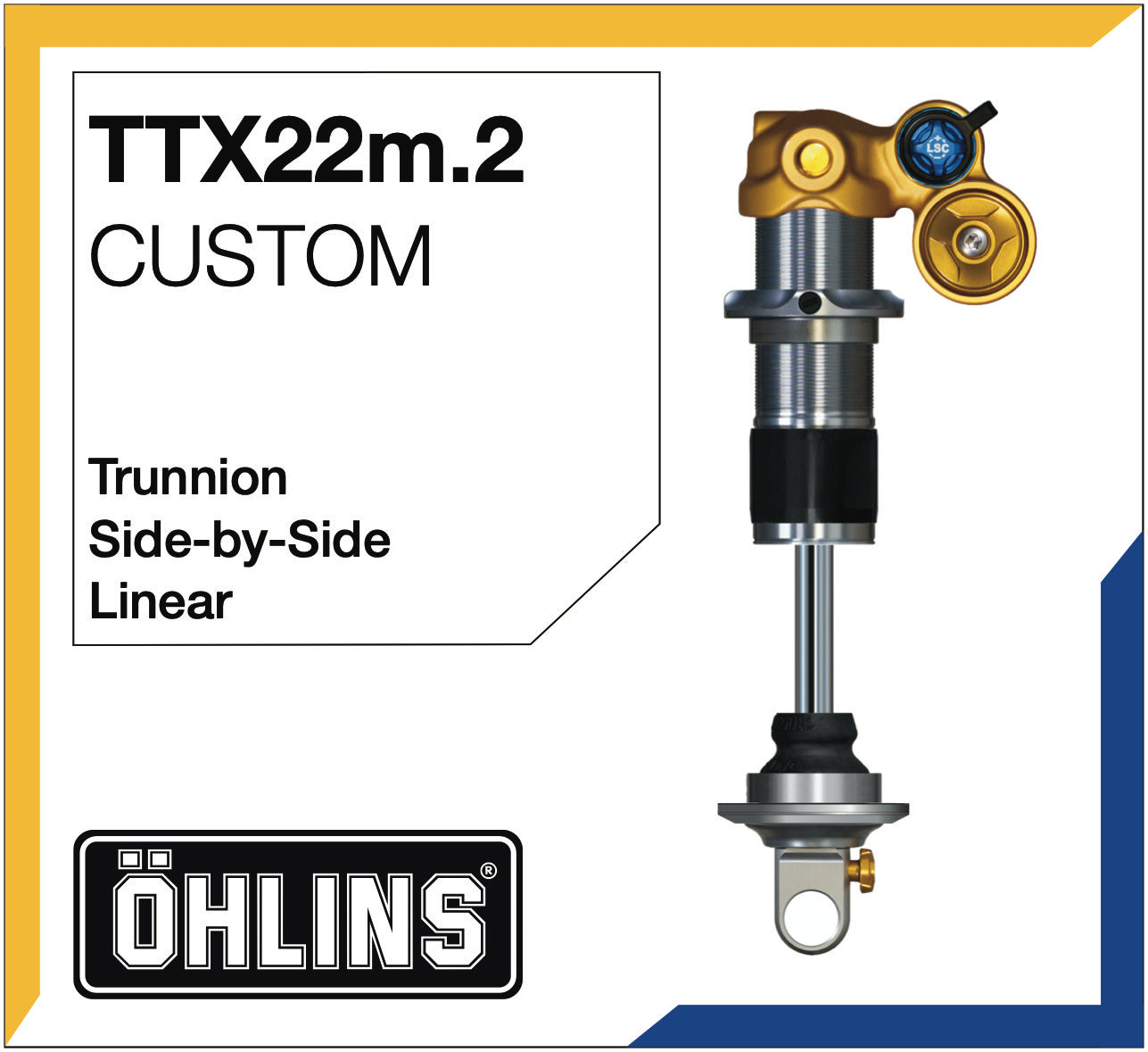

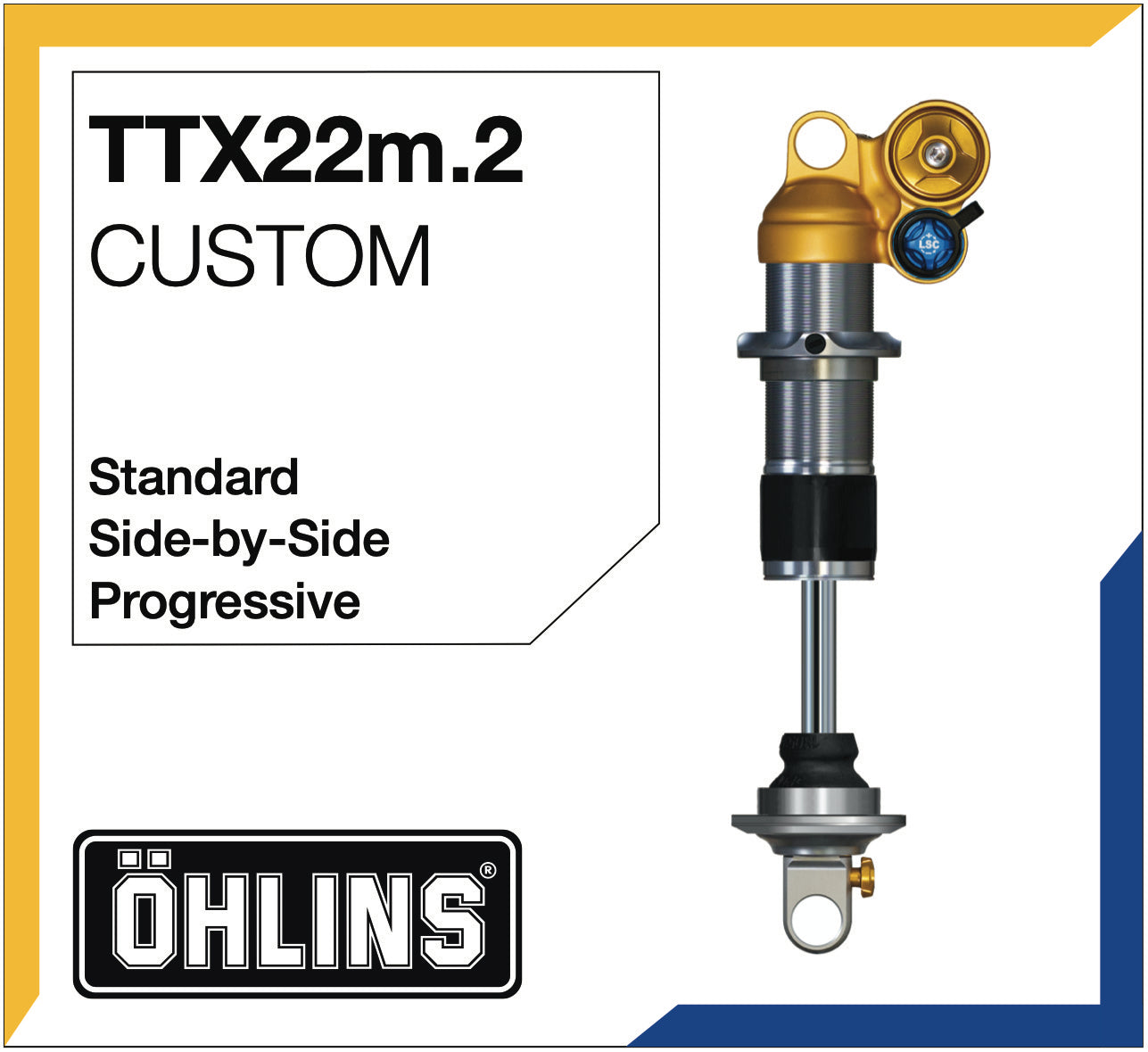

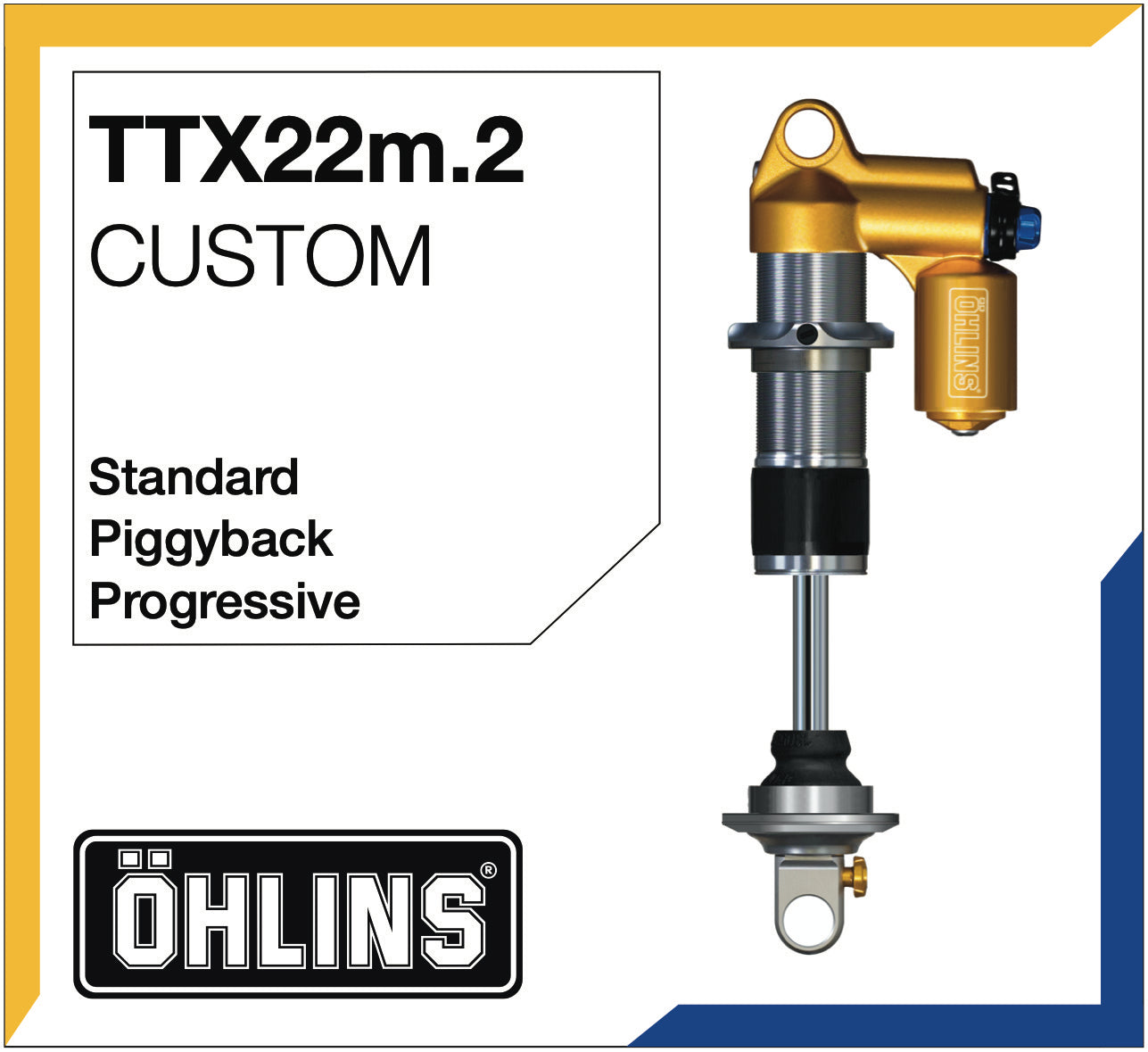

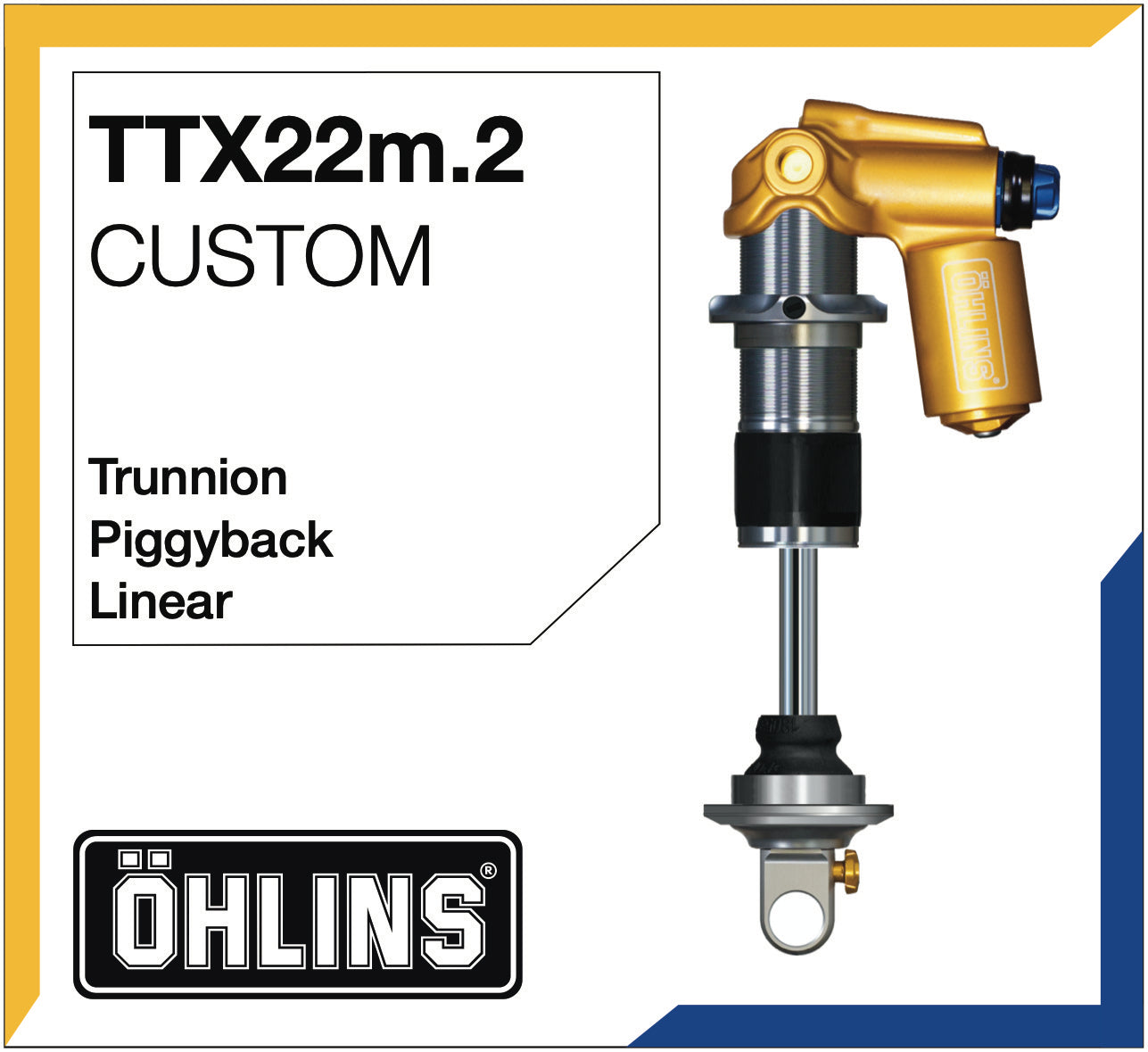

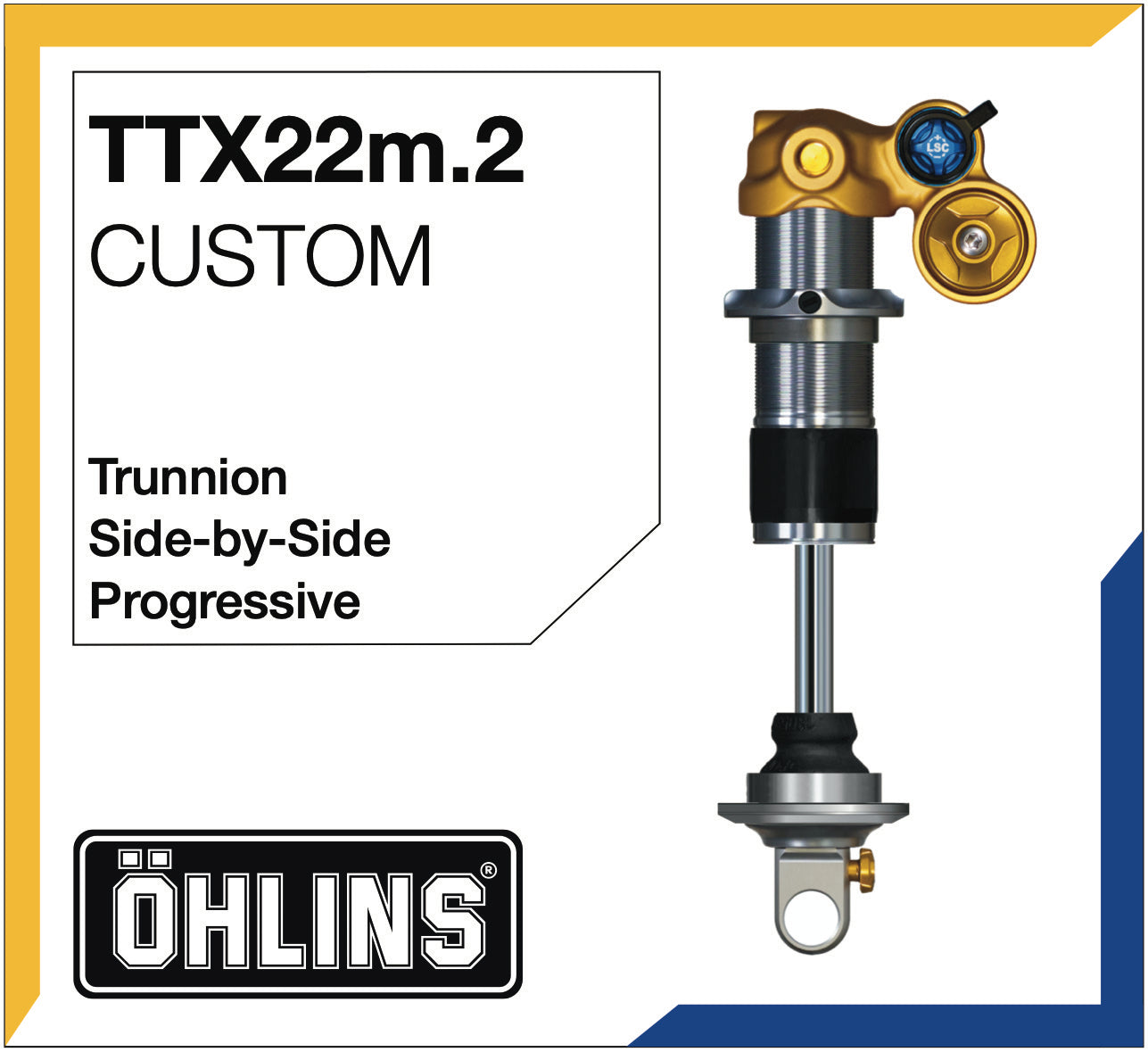

Cylinder heads: standard or Trunnion, Side-by-Side or Piggyback
Black finish also available on demand

General Features
Öhlins Twin-tube TTX technology
Designed for trail / all-mountain / enduro use
Metric shock
External, 3 level high-speed compression adjustment
External, 16 click low-speed compression adjustment rebound damping adjustment
External, 7 click rebound adjustment
Proven setting bank

View full details

Öhlins TTX22m.2 Features

Hydraulic System Twin Tube (TTX)
Spring Type Coil
Low Speed Compression (LSC) Adjustment 16 clicks
High Speed Compression (HSC) Adjustment 3 clicks: open, medium, hard
Rebound Adjustment 7 clicks
Remote Adjustement No
Stroke Adjustment Can be done using 2.5mm spacers
Coil spring preload 1.5-2 turrns after the collar touch the spring
Stroke for 185 and 210mm lengths 55, 52,5, 50, 47.5mm
Stroke for 205 and 230mm lengths 65, 62.5, 60, 57.5mm
Stroke for 225 and 250mm lengths 75, 72.5, 70, 67.5mm
Spring serie for 185 and 210mm lengths 18075
Spring serie for 205 and 230mm lengths 18077
Spring serie for 225 and 250mm lengths 18073
Valve for 185, 205, 210 and 230mm lengths Blue Trail compression valve (position 3 = pedal mode)
Valve for 225 and 250mm lenghts Gold DH compression valve
Non-standard length x Travel available on demand (contact us) 190x45, 250/225mm with Blue Valve, 200x57 (8.75x2.25), 230mm Trek (with Trunnion head)

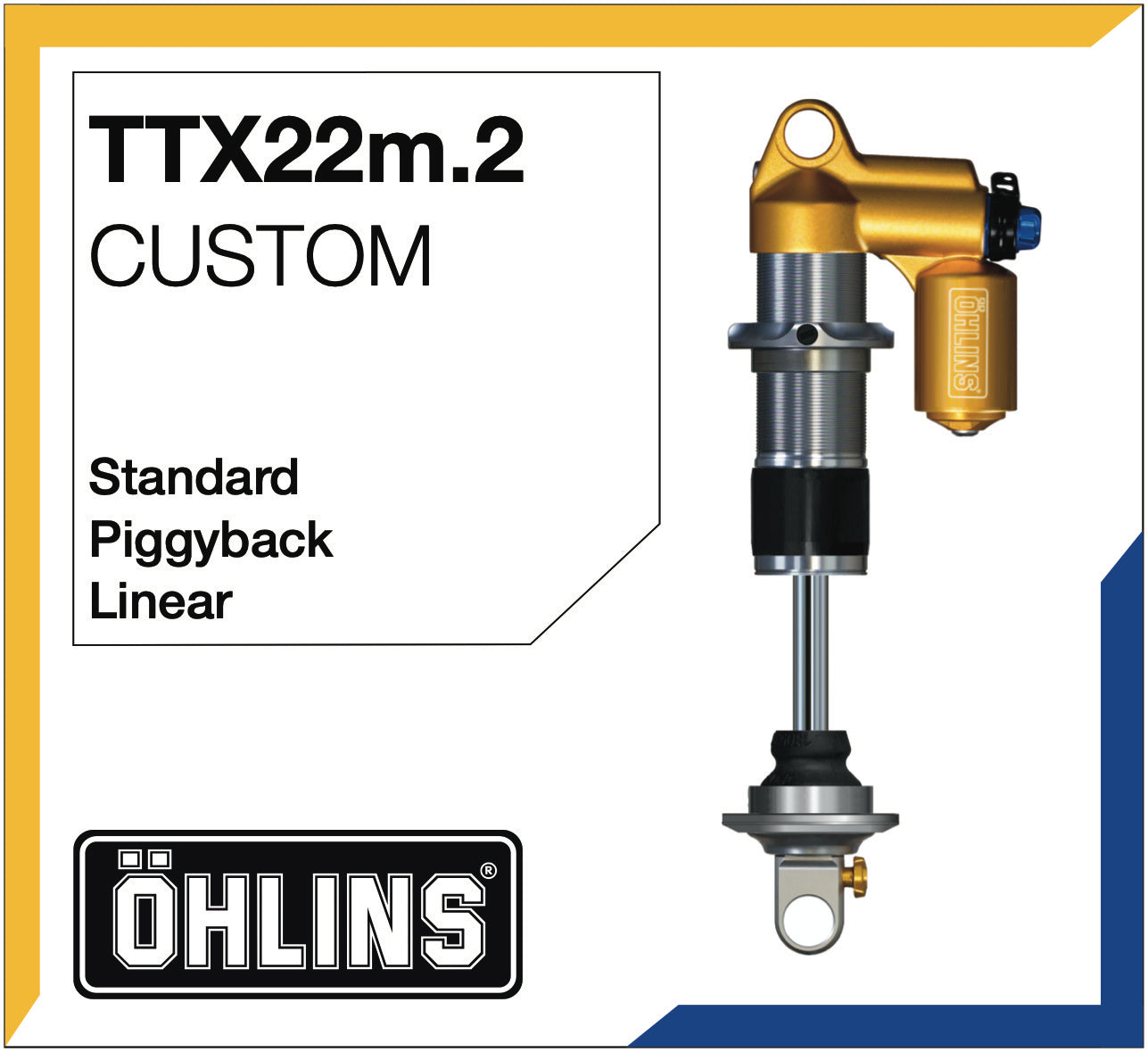

Cylinder heads Side-by-side or Piggyback (external reservoir)
Eyelet size 15mm inner diameter
Service Fully serviceable by qualified Öhlins Service Centers
Durability All parts are made available to qualified Öhlins Service Center
Assembly in Assembly in Switzerland by PMB for all custom units

TTX22m.2 185/210x55-50mm

TTX22m.2 205/230x65-60mm

TTX22m.2 205/250x75-70mm
