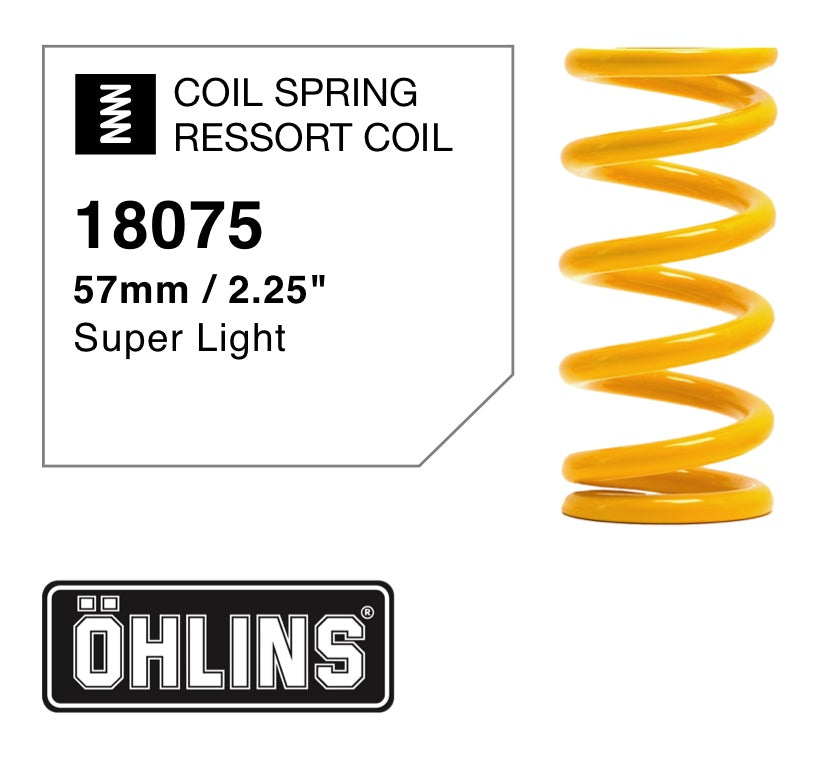

Öhlins spring serie 18075 for 55, 52.5, 50mm travel

Öhlins spring serie 18075 for 55, 52.5, 50mm travel

Regular price CHF 110.00
Regular price Sale price CHF 110.00
Sale Sold out
Tax included.
Spring Rate

Description

  • Öhlins spring serie 18075
  • For TTX22m.2 and TTX22m
  • Primarily made for shocks with 55, 52.5, 50mm travel
  • Also compatible with shocks with travel up to 2.25" (57mm)
  • Lightweight spring
View full details

Getting the right spring for Öhlins TTX22m.2 / TTX22m

  • Having the right spring is the main setting for coil shock: without the right spring, everything else will be off; getting the right spring is the critical starting point before any other setting or tuning
  • There is different spring rates and lengths, and you need to get it right based on:
    • your weight with clothes and gears
    • practice
    • shock travel
    • bike geometry
  • The Öhlins Performance Guide can be used to identify the right spring
  • If you need help to identify the right spring, you can book a call with us (contact@pmbswiss.ch, 80 CHF for 30mns)
  • Fox and Rockshox springs are not compatible with Öhlins shocks
  • Cane Creek springs are often compatible with Öhlins shocks but not optimized, and generally longer than needed

TTX22m.2 / TTX22m Spring Matrix: current series

Series:

  • 18075: for maximum travel 50mm
  • 18076: for maximum travel 55mm
  • 18077 and 18074: for maximum travel 65mm; 18077 replace 18074, both series are equivalent, some spring rates for 18074 remain available
  • 18073: for maximum travel 75mm
  • 18065: for maximum travel 3.5" (89mm) - available on special request
  • Other series were available in the past (18070, 18060..) and were replaced but the current range, which are lighter and a better fit for current shocks (generally sold in metric sizes)
Spring Number
Spring rate N/MM Spring rate LBS/IN

18074

(max 65mm)

18075

(max 55mm)

18076

(max 50mm)

18077

(max 65mm)

18073

(max 75mm)

-01 44 251 18077-01 18073-01
-02 48 274 18077-02 18073-02
-03 52 297 18077-03 18073-03
-04 56 320 18077-04 18073-04
-05 60 343 18077-05 18073-05
-06 64 365 18075-06 18077-06 18073-06
-07 68 388 18075-07 18077-07 18073-07
-08 72 411 18075-08 18076-08 18077-08 18073-08
-09 76 434 18075-09 18076-09 18077-09 18073-09
-10 80 457 18074-10 18075-10 18076-10 18077-10 18073-10
-11 84 480 18075-11 18076-11 18077-11 18073-11
-12 88 502 18075-12 18076-12 18077-12 18073-12
-13 92 525 18075-13 18076-13 18077-13 18073-13
-14 96 548 18075-14 18076-14 18077-14 18073-14
-15 100 571 18075-15 18077-15 18073-15
-16 106 605 18075-16 18077-16 18073-16
-17 112 640 18075-17 18077-17
-18 118 674 18074-18 18075-18 18077-18
-19 124 708 18075-19 18077-19
-20 130 741 18075-20
-21 136 775 18075-21

Need to know more about TTX22m.2 / TTX22m: check the Full spring Chart
